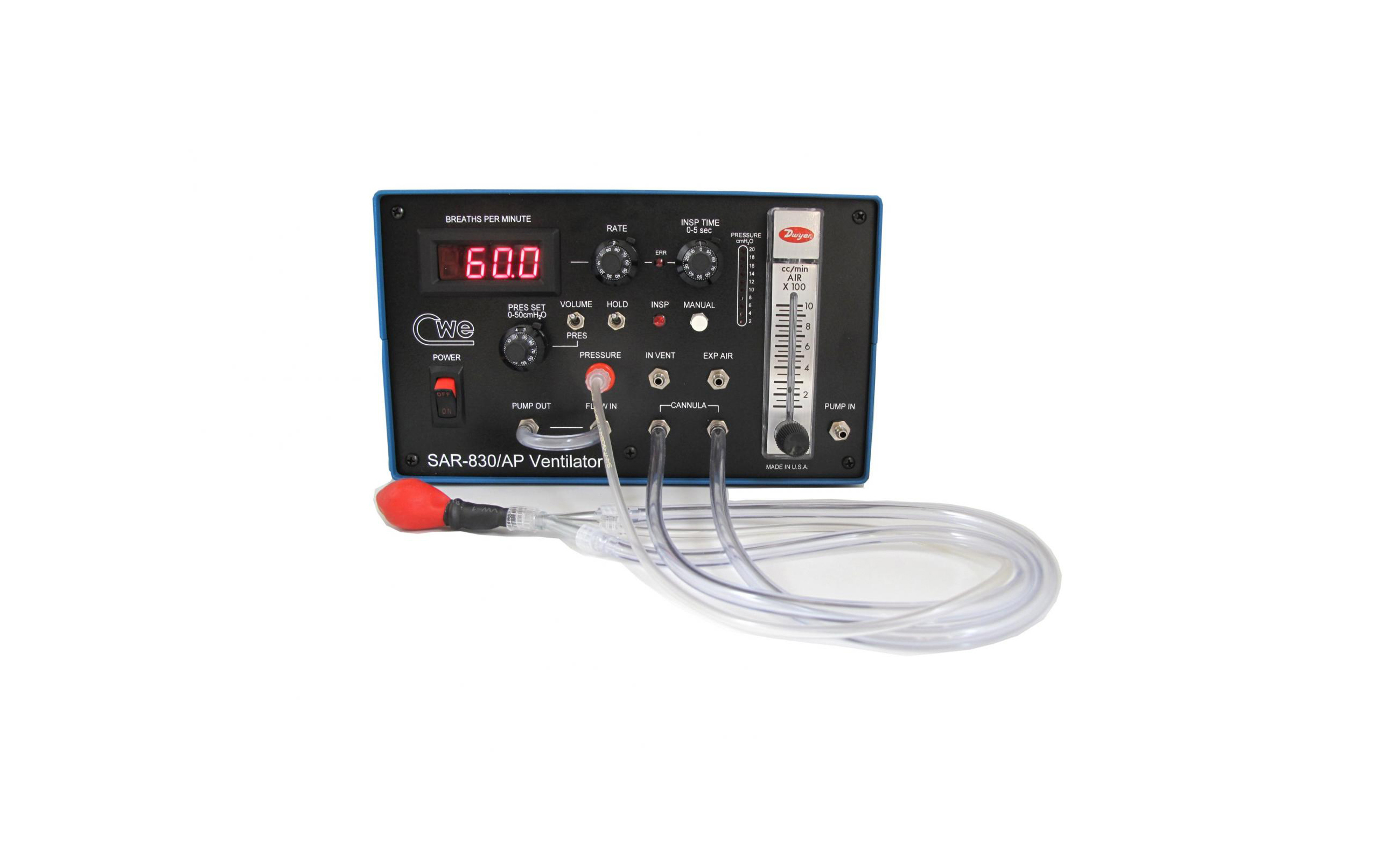

SAR-830/AP Small Animal Ventilator, Volume / Pressure cycled

Volume / Pressure cycled ventilator with internal air pump

SAR-830/AP
Product Category: Small Animal Ventilators
Part No.: 12-02100
  • Dependable, all-electronic ventilator
  • Pressure or volume-cycled operation
  • Wide tidal volume and rate range
  • Mice to Guinea pig size
  • Expandable to 5 animals
  • Safe with oxygen and anesthesia
  • Respiratory rate range: 5 - 200 breaths/min
  • Tidal Volume range (NOTE 1): 0.2 - 35ml
  • Inspiration time range: 0 - 5.00 seconds
  • Inspiratory flow range (NOTE 2): 100 - 1000 ml/minute
  • Pressure control range: 0 - 50.0 cmH2O
  • Analog rate output voltage: 10mV/breath/min
  • Analog pressure output voltage: 50mV/cmH2O
  • Logic Sync Out voltage: 5V (TTL)
  • Remote-control inputs: two TTL logic inputs
  • Power requirements: 120/240VAC, selectable
  • Dimensions: 9Wx5.5Hx9D in (23x14x23 cm)

NOTE 1 Using internal valves External valve assemblies available for larger animals provide up to 100ml volumes.
NOTE 2 Rat - Guinea pig Mouse Kit provides special low range flowmeter and mouse-compatible tubing set.

To set up the SAR-830/AP, you first need to know the desired Tidal Volume (VT) and Respiratory Rate (RR). These can be determined from literature references, or from the charts at the back of our instruction manuals. Besides VT and RR, the other parameter you need is the Inspiration:Expiration Ratio, or IE. For rodents, this is often set as 40% (0.40), which allows for a slightly longer expiration phase. With these basic numbers in hand, the equations below will give the needed SAR-830/AP settings.

First, determine Inspiratory Time (TI) in seconds:
TI = (IE X 60) / RR

Then, determine inspiratory Flow Rate in ml/min:
FLOW = (VT X 60) / TI

Note that VT is in ml, RR is in breaths/minute, TI is in seconds, and FLOW is in ml/minute. The equations account for the seconds & minutes automatically.

Here is an example for a 300g rat:
RR = 55 breaths/minute, VT = 2.5ml, and IE = 40% (0.40)

TI = (0.4 X 60) / 55 = 0.436s, and

FLOW = (2.5 X 60) / 0.436 = 344ml/min

On the SAR-830/AP ventilator, you would then dial in the RR directly using the RATE dial and the digital display. Adjust the flowmeter to the FLOW setting, and the INSP TIME dial for the TI setting. To adjust VT up or down from these settings, it is most convenient to simply increase or decrease the FLOW, while leaving the timing settings as is.

The SAR-830/AP's legendary reliability rests on simple principles of operation and robust construction.  Tidal volumes are generated by gating a known airflow into the lungs for a set inspiratory time. Only three controls — respiratory rate, inspiratory time, and flow rate are necessary to produce tidal volumes and respiratory rates over a wide range. Our SAR-830/AP has the additional feature of pressure-cycling, where the lungs are always inflated to a set pressure on each inspiration. Compatible with Isoflurane Anesthesia systems.

Data Sheet

Accessories

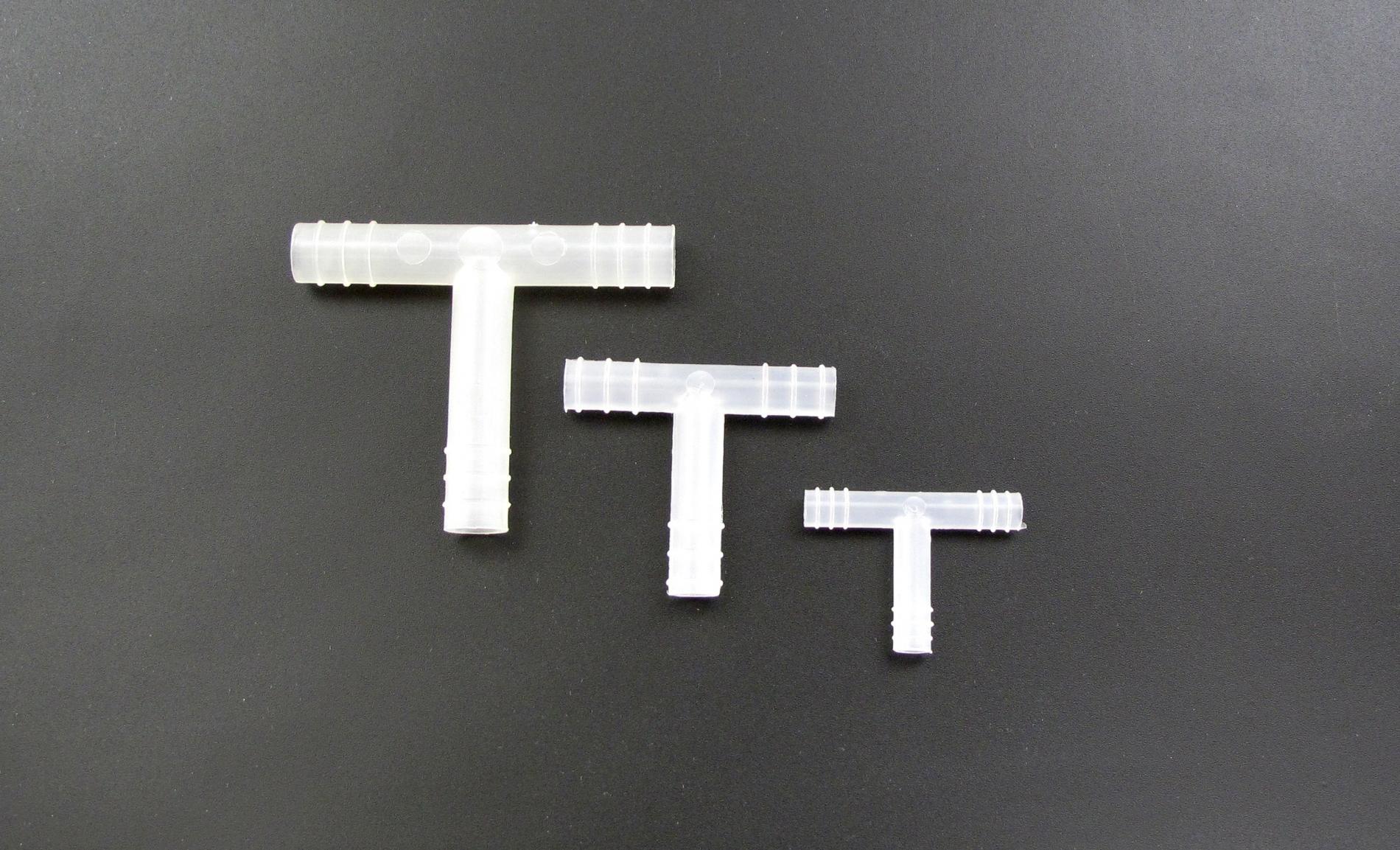

"T" Connector Kit

"T" Connector Kit

Part No. 12-01120

1 each 1/8", 3/16", 1/4 ID (3.17, 4.75, 6.35mm)

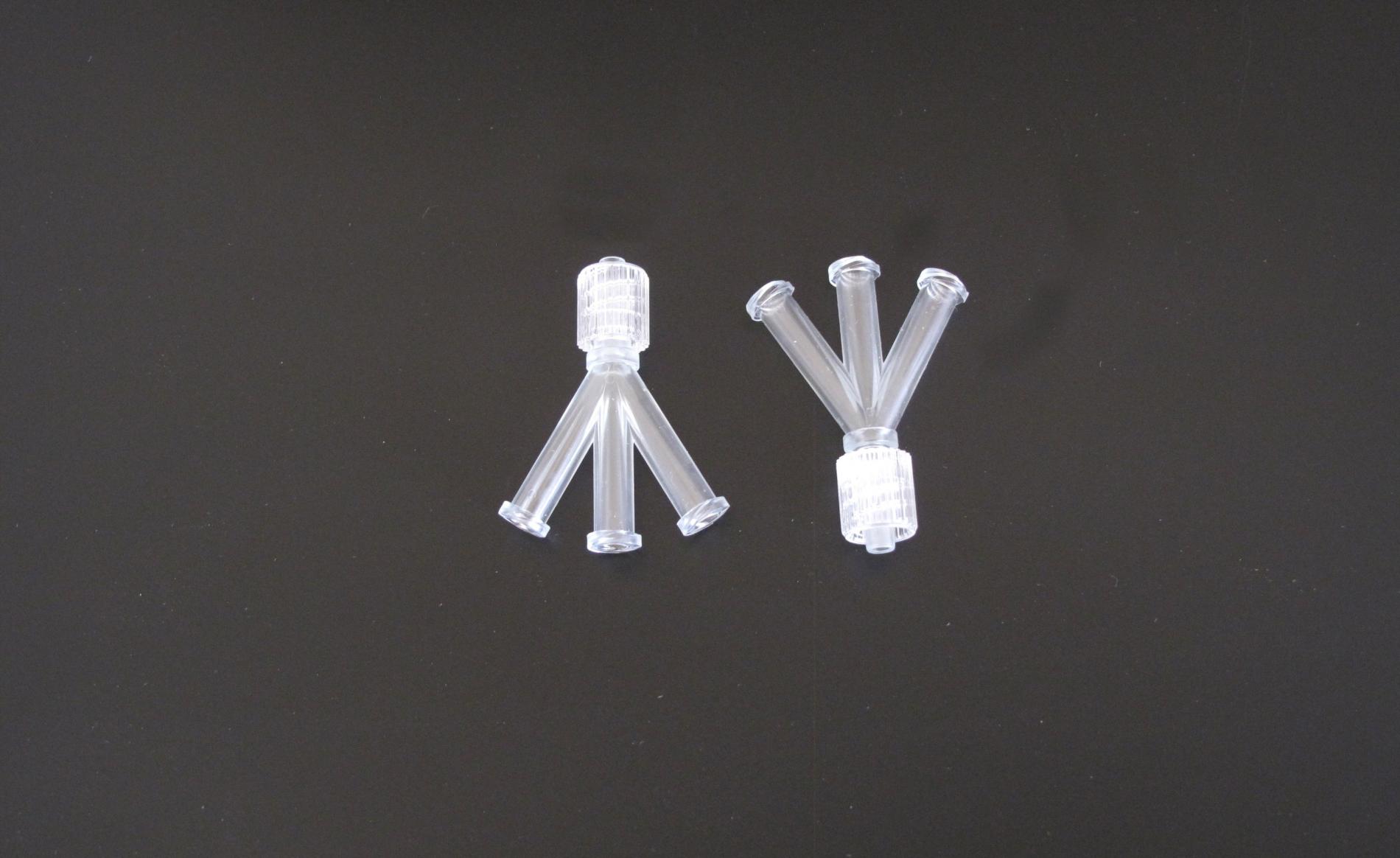

"W" Connector Kit

"W" Connector Kit

Part No. 12-01114

For SAR-1000 & SAR-830/AP Ventilators, pack of 2

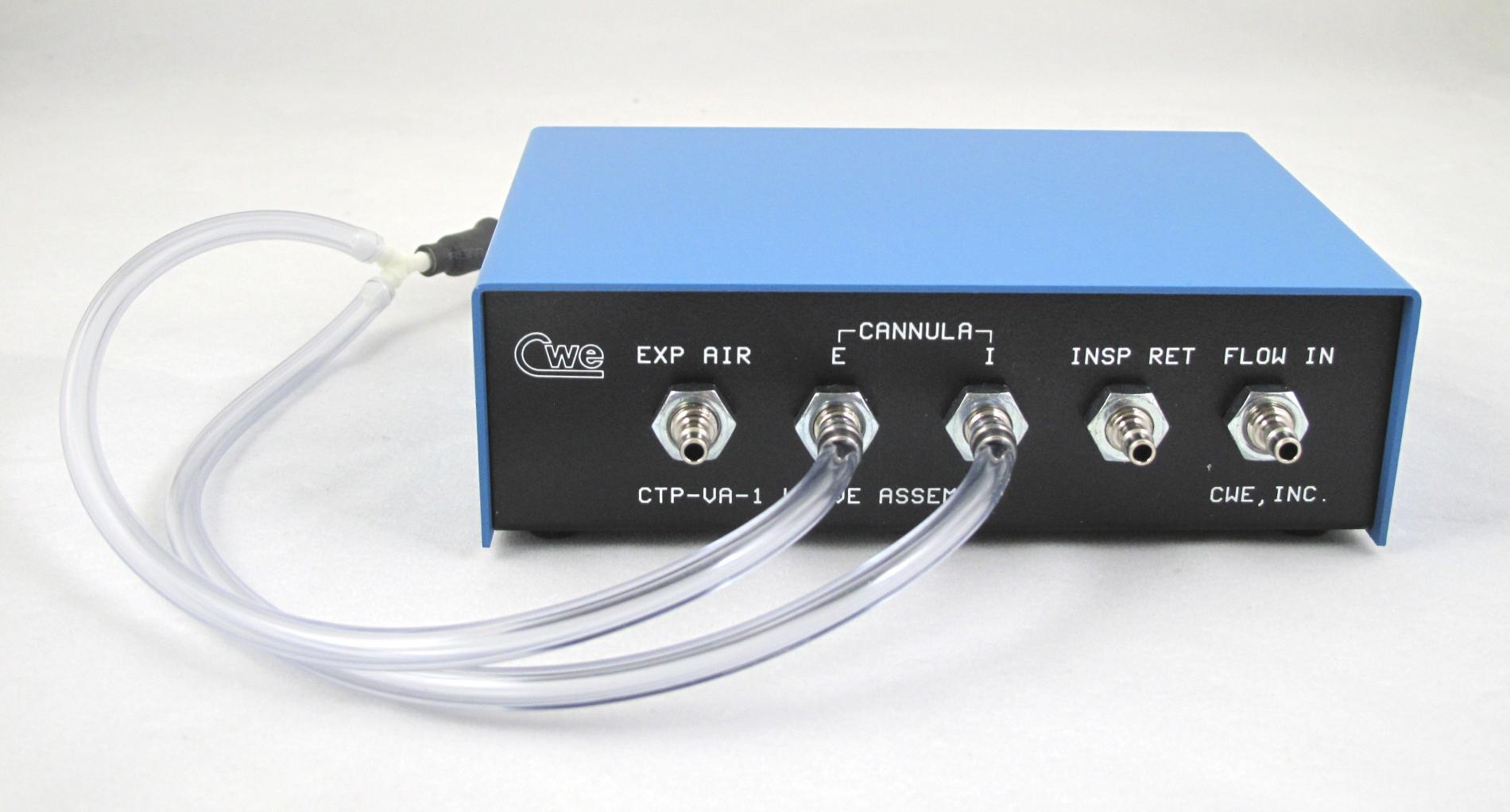

CTP-VA-1 External Valve Assembly for SAR ventilator

CTP-VA-1 External Valve Assembly

Part No. 12-04000

Rodent size (same as SAR-1000 internal valves).

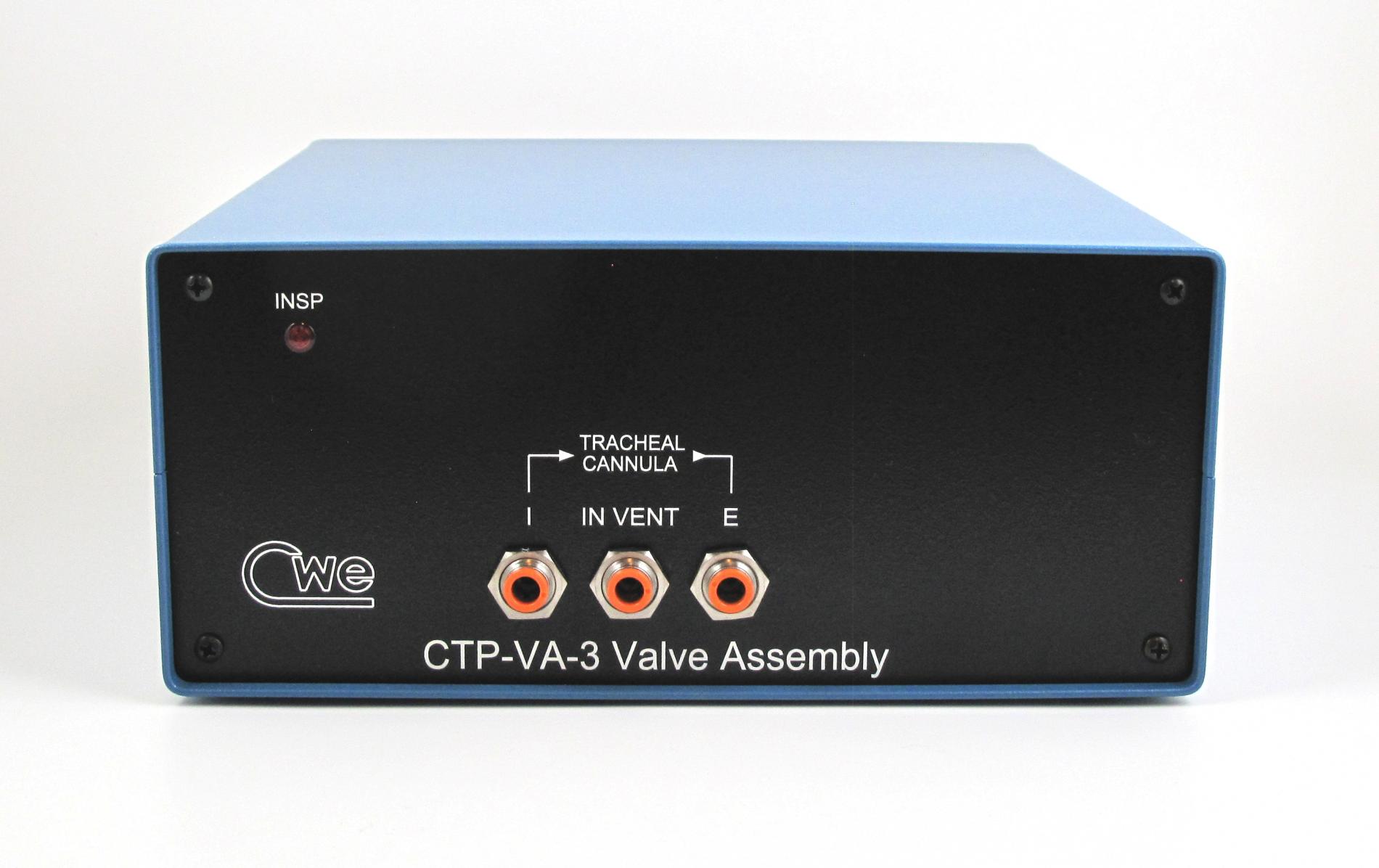

CTP-VA-3 External Valve Assembly for SAR ventilators

CTP-VA-3 External Valve Assembly

Part No. 12-05000

rabbit, cat size

EFM-1 Flowmeter/regulator with stand

EFM-1 Flowmeter/regulator with stand

Part No. 12-10020

Flowmeter/regulator, specify range: 100 ml, 1, 2.5, 5, 10 or 20 liters/min

EFM-4 Flowmeter/regulator manifold

EFM-4 Flowmeter/regulator manifold

Part No. 12-10021

4 Flowmeter/regulator manifold, four flowmeters, specify range.

Low-pressure in-line regulator for use with SAR-830 series ventilators.

LP-REG Low-pressure in-line regulator for use with SAR-830 series ventilators

Part No. 12-11001

Low-pressure in-line regulator for use with SAR-830 series ventilators, allows long, constant lung pressure inflations for imaging applications

Mouse kit for SAR-830 ventilator

Mouse Kit

Part No. 12-01020

For SAR-830/AP Ventilator: Includes External 100cc/min flow meter with stand, and low-volume tubing set for mouse (body weight 10g - 100g)

MVA-4 Multivalve adapter for SAR ventilators

MVA-4 Multivalve electrical adapter

Part No. 12-10010

Multivalve electrical adapter for adding up to 4 CTP-VA-1 External Valve Assemblies per ventilator.

External air pump, 8 liter/min range

PUMP-8 External air pump, 8 liter/min range

Part No. 12-10032

External air pump, 8 liter/min range

Remote Control Manual Switch

Remote Control Manual Switch

Part No. 12-01211

HOLD / MANUAL switch for SAR-830/AP or SAR-1000 (please specify).

Replacement tubing set for SAR-830/AP and SAR-1000 Ventilators, mice

Replacement Mouse Tubing Set

Part No. 12-03210

Replacement tubing set for SAR-830/AP and SAR-1000 Ventilators, mice.

Replacement Rat Tubing Set

Replacement Rat Tubing Set

Part No. 12-03211

Replacement tubing set for SAR-830/AP and SAR-1000 Ventilators, rats.

SAR-830 Pump Kit

SAR-830 Pump Kit

Part No. 12-01110

Replacement Air Pump Kit for SAR-830/AP Ventilator.

Replacement Solenoid Valve set for SAR-830/AP Ventilator

SAR-830 Valve

Part No. 12-01113

Replacement Solenoid Valve set for SAR-830/AP Ventilator; includes 2 valves w/ fittings

Large test balloon

Test Balloon Large

Part No. 12-91003

Latex Test Balloon, large, rabbit size, approx.volume 20ml (pack of 5)

Small test balloon

Test Balloon Small

Part No. 12-91002

Latex test Balloon, small, rat, approximate volume 5ml (pack of 5)

Test Balloon Tiny

Test Balloon Tiny

Part No. 12-91001

Latex Test Balloon, extra-small, mouse, approx.volume 1cc (pack of 5)

TRACH-1 Mouse Endotracheal tube for CWE ventilators, pack of 5

TRACH-1 Mouse Endotracheal tube, pack of 5

Part No. 13-21031

Endotracheal tube, flexible Teflon with Luer connector (mouse), 20 gauge, pack of 5

TRACH-2 Rat Endotracheal tube for CWE ventilators, pack of 5

TRACH-2 Rat Endotracheal tube, pack of 5

Part No. 13-21032

Endotracheal tube, flexible Teflon with Luer connector (rat), 14 gauge, pack of 5

VA-CABLE Replacement Valve Assembly Cable for CWE ventilator expansion valves

VA-CABLE Replacement Valve Assembly Cable

Part No. 12-12001

Replacement Cable for CTP-VA-1 or CTP-VA-3 valve assemblies.  9' long.

Replacement internal ventilator filter for SAR-series ventilators

Ventilator Filter

Part No. 12-01115

Replacement internal ventilator filter for SAR-series ventilators.
